Advatech’s Precision Regulated DC PSU’s are tailored for use with SiPMs (Silicon Photo-multipliers), including those supplied by Sensl, Hamamatsu (MCCP), Ketek etc.
Parameters are summarised as follows:
Parameters are summarised as follows:
- 0 to +80V adjustable output
- 0 to +2.5V output control voltage
- Up to 4mA output current
- 0.01% load regulation at 2mA
- High accuracy, trimmable output
- Low ripple and noise
- Precision +2.5V voltage reference output
- Over-current shutdown
- Adjustable output current limit
- Output voltage monitor
- Output current monitor
- Compact SIP module
- Size: 27.9 x 12.7 x 6.6mm

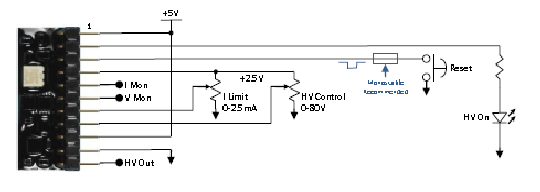

| Pin | Function | Signal Range | Signal Type |
|---|---|---|---|
| 1 | Enable | 0V=Off, +5V=On | TTL Input |
| 2 | HV On | 0V=Off, +5V=On | TTL Output |
| 3 | #Reset | 0V=Reset | TTL Input |
| 4 | Voltage Reference | +2.5V | Analog Output |
| 5 | HV Current Monitor | 0V to +4V | Analog Output |
| 6 | HV Voltage Monitor | 0V to +2.5V | Analog Output |
| 7 | HV Current Limit | 0V to +4V | Analog Input |
| 8 | HV Control | 0V to +2.5V | Analog Input |
| 9 | Power | +5V | Power |
| 10 | Ground | Ground | Ground |
| 11 | HV Output | 0V to +80V | Analog Output |
