LaCl3(Ce) Scintillation Crystals
LaCl3(Ce) - Lanthanum Chloride - is a salt compound of lanthanum and chlorine and one of a new generation of inorganic scintillator based gamma radiation detectors. LaCl3(Ce) scintillators have fast light output decay times provide excellent energy resolution performance.

LaCl3(Ce) scintillator crystals have:
  • Fast decay times - 28nsec
  • High light outputs - 49,000 Photons/MeV
  • The capability to achieve excellent Energy Resolution (e.g. c.3.8%@662keV, 1” Dia./1” Long)
  • Optical outputs with good linearity with temperature
  • The capacity to deal with high count rates
  • Excellent radiation hardness

LaCl3(Ce) scintillator crystals - issues to be aware of:
  • Hygroscopic and therefore requires encapsulation


LaCl3(Ce) scintillator crystals are useful for applications such as:
  • Security - cargo inspection
  • Medical - SPECT
  • Industrial - Well logging
  • Nuclear and high energy physics - specialist applications
LaCl3(Ce) Scintillation Crystals
- Properties -

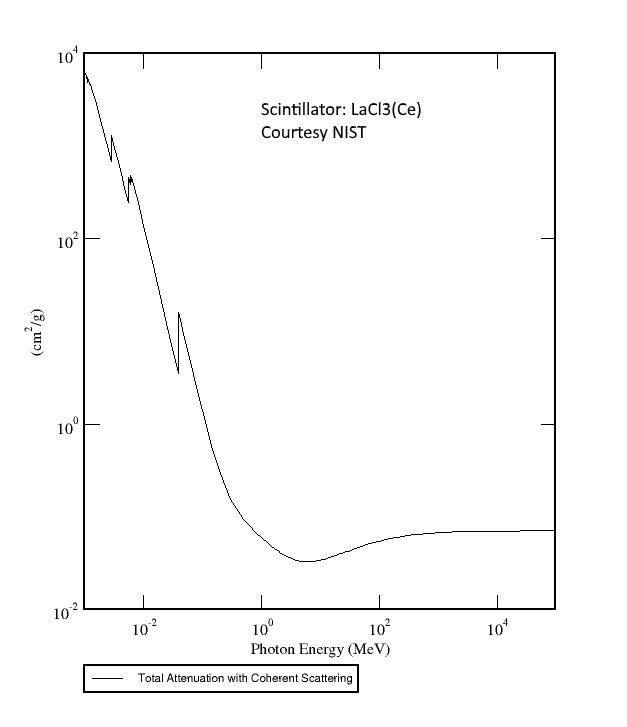

LaCl3(Ce) Mass Attenuation Coefficients
LaCl3(Ce) Mass Attenuation Coefficients
LaCl3(Ce) Scintillator Emission Spectrum
LaCl3(Ce) Scintillator Emission Spectrum
LaCl3(Ce) Scintillation Crystals
- Optical Properties -
Property Units Value
Wavelength (Max. Emission) nm 350
Decay Times ns 28
Light Yield photons/keV 49
Radiation Length cm 2.813
Radiation Length g.cm-2 10.86
Moliere Radius cm 3.652
Reflection Loss/Surface % 6.8
LaCl3(Ce) Scintillation Crystals
- Mechanical Properties -
Property Units Value
Chemical Formula LaCl3
Density g/cm³ 3.86
Lattice Constant nm 0.6196
Melting Point ºC 1135
Hardness Mho 3
LaCl3(Ce) Scintillation Crystals
- Further Reading/Publications -
LaCl3(Ce) Scintillation Crystals
- Sizes -
Diameters:
75 max.
Lengths:
75 max.
